Core strengths

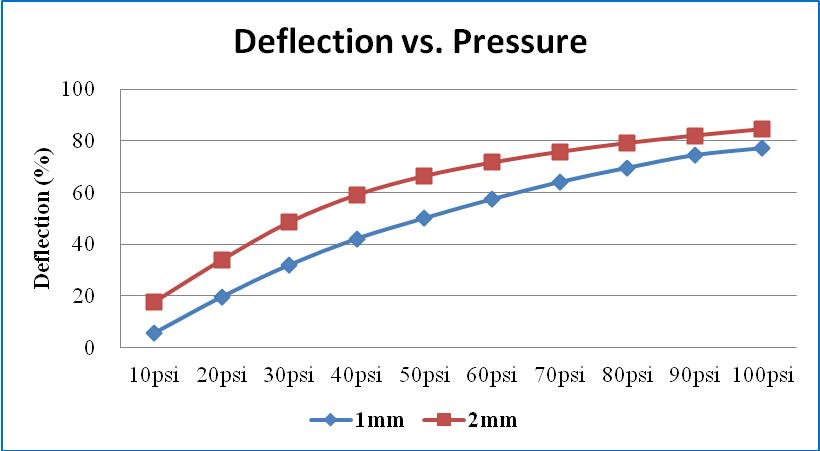

【 High deformation filling, good adhesion 】 With a thickness of 3mm and a deformation of 50% under 60psi pressure, the 40 Shore 00 soft property can fully fill various rough surfaces and gaps, eliminate air residue, and achieve tight adhesion under low pressure

Self adhesive design, easy installation: Comes with adhesive without the need for additional coating, can be applied immediately after tearing off the film, simplifies the assembly process, avoids adhesive contamination of components, adapts to automated production and manual installation, and improves work efficiency

【 High insulation safety, stable and reliable 】 Dielectric breakdown strength>8kV/mm, volume resistance>1 × 10 ¹⁰ ohm cm, excellent insulation performance; Working temperature -50-200 ℃, UL94V0 fire protection, long-term use without aging and failure risk

[Universal adaptation, high cost performance] 1.5W/m · K thermal conductivity efficiency meets the heat dissipation needs of medium and low power equipment, with multiple thickness options of 0.5-8mm, elongation rate of 95%, tensile strength of 15psi, stable mechanical performance, suitable for general scenarios in multiple industries

Applicable scenarios

Core application devices/components

Consumer electronics: routers, set-top boxes, projectors, high deformation filling the internal gaps of the body, self-adhesive design does not occupy installation space

LED lighting: LED tube, floodlight substrate, universal thermal conductivity efficiency suitable for low to medium power heat dissipation, fire-resistant insulation meets lighting safety standards

Industrial electronics: small power modules, sensors, soft bonding to protect precision components, wide temperature characteristics suitable for workshop environments

Automotive electronic assistance: car navigation, car charger, light blue exterior suitable for interior assembly, low-pressure installation does not damage equipment

Instructions for Use

1. Clean the surface and heat dissipation structure of the heating element with anhydrous ethanol, remove oil and dust, and air dry until there are no residues;

2. Confirm that the product thickness matches the installation gap, cut it to the required size as needed, and remove the protective film on the surface of the thermal pad;

3. Align the installation position with the thermal pad and lightly press it to ensure full contact between the thermal pad and the surface, ensuring no residual bubbles;

4. In conjunction with screw locking or buckle fixation, it is recommended to apply a pressure of 20-60psi to ensure a stable fit without the need for additional adhesive coating.

Precautions

Storage conditions: Sealed and stored in a cool and dry place (8-28 ℃), avoiding direct sunlight and high temperature and humidity environment. Shelf life is 12 months from the date of production

Usage taboos: Avoid contact with strong acids, bases, and organic solvents, and prohibit use in food contact scenarios and extreme vacuum environments

Thickness selection: Choose the appropriate thickness based on the installation gap, and it is recommended to reserve 15-25% compression to ensure the fitting effect

Customization Description: Supports cutting customization within the thickness range of 0.5-8.0mm, specific length and width dimensions and required thickness need to be provided
