Core strengths

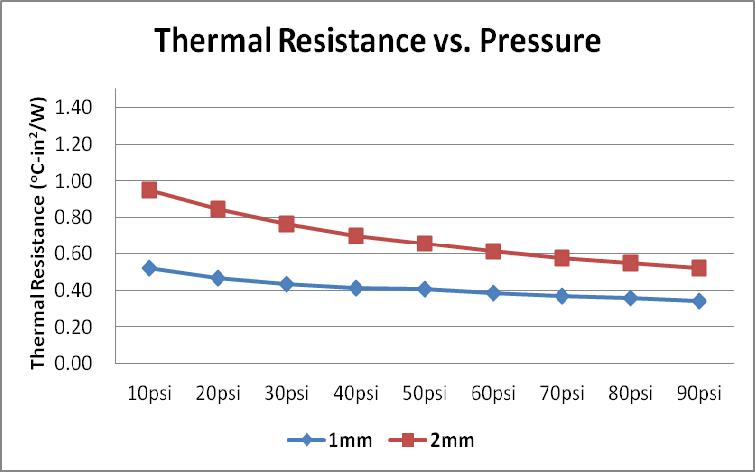

【 High thermal conductivity, low resistance, efficient heat dissipation 】 The thermal conductivity coefficient can reach up to 3.0W/m · K, with a thickness of 40mil and a thermal resistance of only 0.45 ℃· in ²/W under 20psi pressure. The heat conduction speed is fast, and the heat dissipation efficiency is increased by 35% compared to conventional products

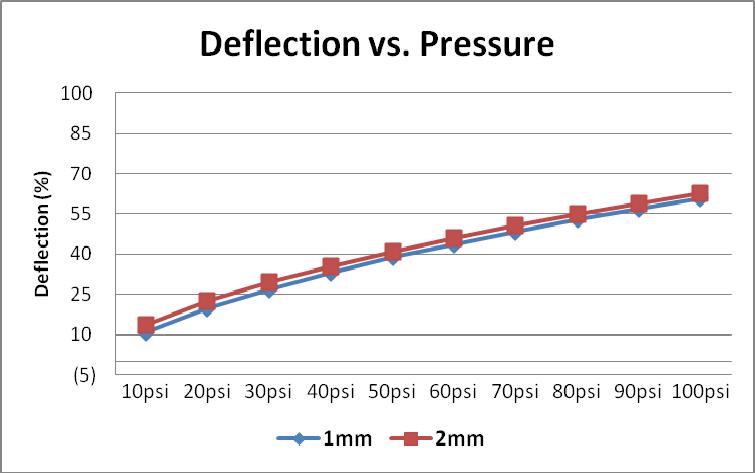

【 Soft and high elasticity, strong filling ability 】 50 Shore 00 soft properties, 2mm thickness, deformation of 45% under 60psi pressure, can fully fill various rough surface gaps, eliminate air gaps, and significantly reduce contact thermal resistance

【 Wide temperature safety, stable and reliable 】 The working temperature covers -50-200 ℃, can withstand extreme high and low temperature environments, UL94 V0 fire certification, dielectric breakdown strength>200VAC/mil, excellent insulation performance, and long-term use without aging failure risk

【 Excellent mechanical performance, wide adaptability 】 Tensile strength of 12psi, elongation at break of 80%, good flexibility, available in multiple thicknesses of 0.5-8mm, adaptable to different equipment clearances and installation scenarios, balancing filling and structural stability

Applicable scenarios

Core application devices/components

Industrial electronics: industrial power supply, small frequency converter, low voltage installation without damaging components, filling rough surfaces to improve heat dissipation stability

Communication equipment: router amplifier module, entry-level optical module, soft fitting simplified assembly, wide temperature characteristics suitable for indoor and outdoor environments

Consumer electronics: set-top boxes, projectors, 3.0W thermal conductivity efficiency to meet medium power heat dissipation, high elongation to adapt to complex internal structures of devices

LED lighting: LED floodlights, stage light substrates, fire certification meets lighting safety standards, gap filling improves heat dissipation uniformity

Instructions for Use

1. Clean the surface and heat dissipation structure of the heating element with anhydrous ethanol, remove oil and dust, and air dry until there are no residues;

2. Confirm that the product thickness matches the installation gap, cut it to the required size as needed, and remove the protective film on the surface of the thermal pad;

3. Align the installation position with the thermal pad and lightly press it to ensure full contact between the thermal pad and the surface, ensuring no residual bubbles;

4. In conjunction with screw locking or buckle fixation, it is recommended to apply a pressure of 20-60psi to ensure a stable fit without the need for additional adhesive coating.

Precautions

Storage conditions: Sealed and stored in a cool and dry place (8-28 ℃), avoiding direct sunlight and high temperature and humidity environment. Shelf life is 12 months from the date of production

Usage taboos: Avoid contact with strong acids, bases, and organic solvents, and prohibit use in food contact scenarios and extreme vacuum environments

Thickness selection: Choose the appropriate thickness based on the installation gap, and it is recommended to reserve 10-20% compression to ensure the fitting effect

Customization Description: Supports cutting customization within the thickness range of 0.5-8.0mm, specific length and width dimensions and required thickness need to be provided
