Core strengths

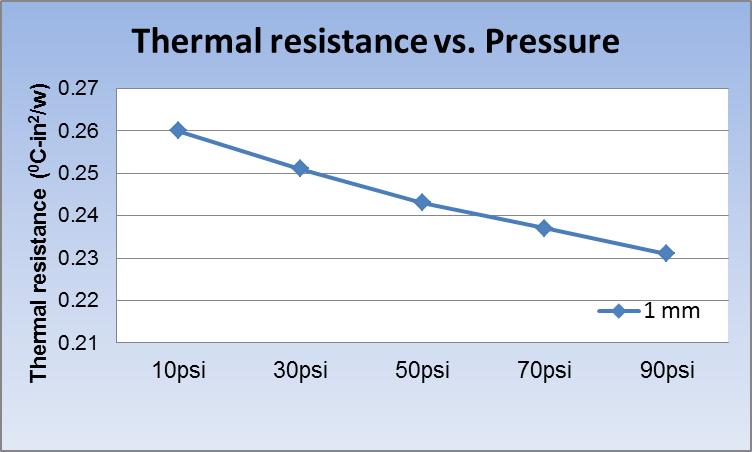

【 High thermal conductivity, low resistance, efficient heat dissipation 】 The thermal conductivity coefficient can reach up to 6.1W/m · K, with a thickness of 40mil and a thermal resistance of only 0.26 ℃· in ²/W under 10psi pressure. The heat conduction speed is fast, and the heat dissipation efficiency is improved by 85% compared to conventional products

Self adhesive design, easy installation: With built-in adhesive, no additional glue is required, and the film can be peeled off and pasted, simplifying the assembly process and avoiding residual adhesive contamination of devices. It is suitable for automated production and manual installation, improving work efficiency

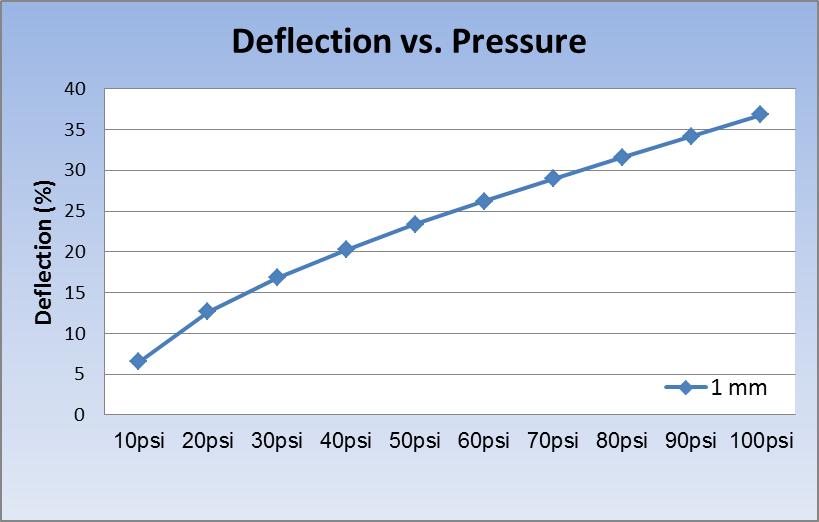

【 Soft fitting, strong filling 】 50 Shore 00 soft properties, 1mm thickness, deformation of 25% under 60psi pressure, can fully fill various rough surface gaps, eliminate air gaps, and reduce contact thermal resistance

【 High insulation safety, stable and reliable 】 Dielectric breakdown strength>10kV/mm, excellent insulation performance; Working temperature coverage -50-200 ℃, UL94 V0 fire certification, tensile strength of 20psi, elongation of 31%, stable mechanical properties, long-term use without aging failure risk

Applicable scenarios

Core application devices/components

Industrial electronics: frequency converter, IGBT power module, high insulation performance to meet electrical safety requirements, low voltage and low resistance to enhance heat dissipation stability

New energy vehicles: on-board power module, low-power controller, wide temperature characteristics, resistant to extreme on-board environments, self-adhesive installation does not occupy space

High end consumer electronics: gaming laptop CPU/GPU, professional workstation, 6.1W high thermal conductivity for rapid cooling, avoiding high load lag

Communication equipment: high-power optical module, power amplifier module, high insulation self-adhesive characteristics, simplified assembly while ensuring safe operation of equipment

Instructions for Use

1. Clean the surface and heat dissipation structure of the heating element with anhydrous ethanol, remove oil and dust, and air dry until there are no residues;

2. Confirm that the product thickness matches the installation gap, cut it to the required size as needed, and remove the protective film on the surface of the thermal pad;

3. Align the installation position with the thermal pad and lightly press it to ensure full contact between the thermal pad and the surface, ensuring no residual bubbles;

4. When using screws for locking or fastening, it is recommended to apply a pressure of 10-60psi to ensure a stable fit without the need for additional adhesive.

Precautions

Storage conditions: Sealed and stored in a cool and dry place (8-28 ℃), avoiding direct sunlight and high temperature and humidity environment. Shelf life is 12 months from the date of production

Usage taboos: Avoid contact with strong acids, bases, and organic solvents, and prohibit use in food contact scenarios and extreme vacuum environments

Thickness selection: Choose the appropriate thickness based on the installation gap, and it is recommended to reserve 10-20% compression to ensure the fitting effect

Customization Description: Supports cutting customization within the thickness range of 0.5-8.0mm, specific length and width dimensions and required thickness need to be provided
